Experience 6000lbs of Unstoppable Force: Your Path to Off-Road Victory.
Experience Unmatched Strength: 6000lbs of Off-Road Dominance.
Pushing Beyond Boundaries with Our 3.2 HP Motor. Conquer any challenge with ease as you recover your ATV/UTV using our 6,000 lbs electric winch/ATV winch. Engineered with a 192:1 lower gear ratio and a 3-stage planetary gear system, our winch for UTV/electric winch guarantees dynamic, seamless, and lightning-quick winching action.
Remote controller shines with built-in LED lights for night-time winching, doubling as a versatile work light with its magnetic base and adjustable hand grip.
Much more tensile than steel cable and can be repaired on the spot with proper braiding techniques, this winch rope can withstand all the pressure that comes along with pulling.
Electric Winch |
|
Product Dimension |
42cm x 12.8cm x 12.6cm ( L x W x H) |
Product Weight |
13.9kg |
Housing |
Aluminum |
Finish |
Matte Black Powder Coating |
Hawse |
Aluminum |
Hook |
Forged Steel |
Waterproof |
IP-67 |
Rated Line Pull(Single Line) |
6,000bs (2,722kg) |
Motor |
3.2HP (2.4kW); Permanent Magnet Motor |
Gear Train |
Differential Planetary |
Gear Reduction Ratio |
192 : 1 |
Gear Train |
3-Stage Planetary |
Free Spooling Clutch |
Turn |
Drum Diameter/Length |
Ø50.08mm x 127.5mm |
Brake |
Automatic Load-Holding Brake |
Duty Cycle |
Intermittent Per SAE J706 Section 6.2 |
Mounting Bolt Pattern |
168mm x 74mm |
Recommended Battery |
175CCA |
Control Mode |
Wired/Wireless Control |
Full Load Line Speed (m/min) |
1.524m |
No-Load Line Speed (m/min) |
4.2m |
Max Current at Full Load (A) |
240 (amps) |
Certification |
CE |
Synthetic Rope |
|
Material |
UHMWPE |
Rope Length |
15m |
Breaking Capacity |
7,716lbs (3,500kg) |
Remote Controller |
|
Operating Band |
433MHz |
Remote Control Distance |
15m |
Input Voltage |
5V |
Waterproof |
No |
1 PC(s) BUNKER INDUST 6,000lbs Electric Winch
1 PC(s) Remote Controller
1 PC(s) Control Box
1 PC(s) Wired Controller
1 PC(s) Mounting Plate
1 PC(s) Hawse
1 PC(s) Hook
1 PC(s) Hook Strap

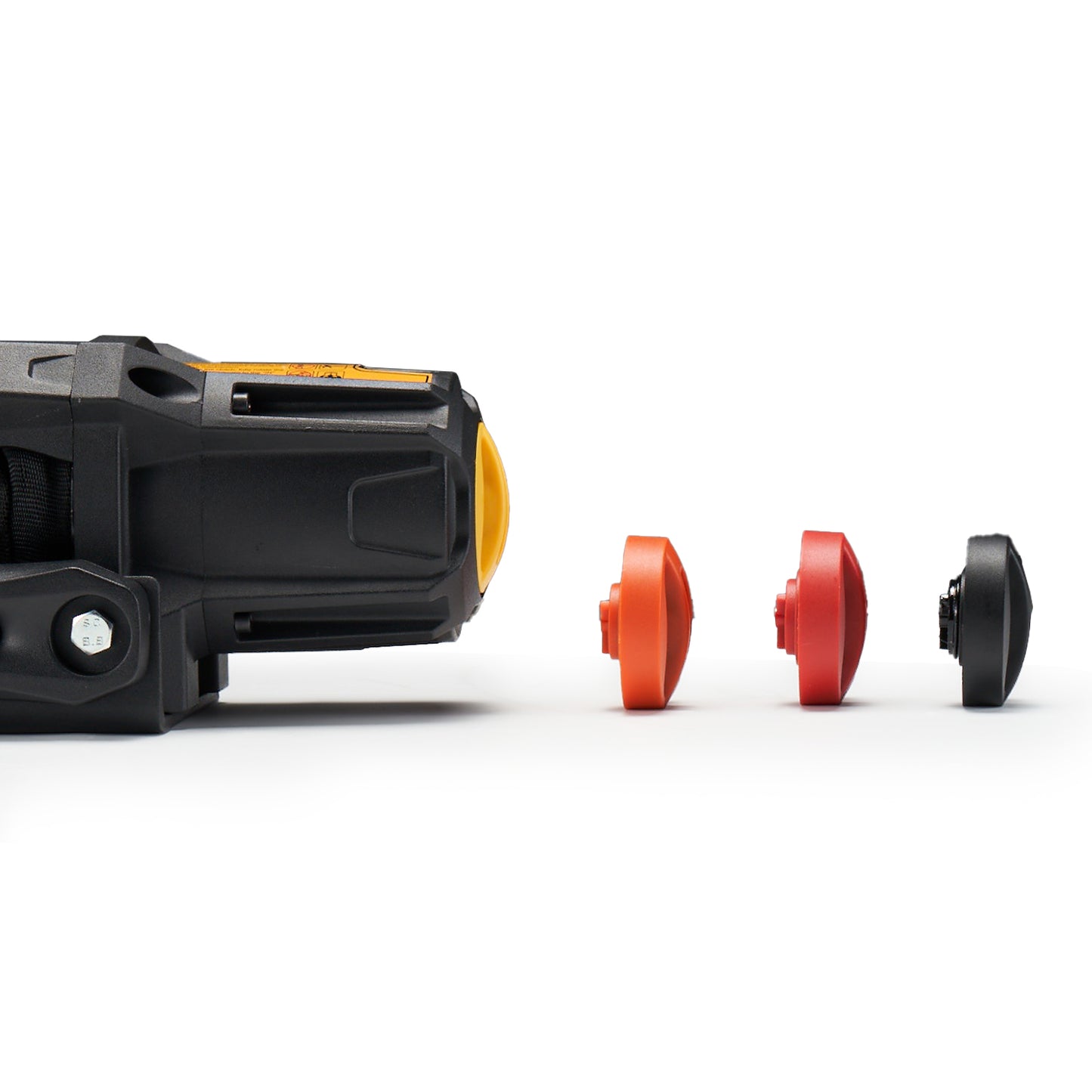

3 PC(s) Clutch Caps (Yellow; Orange; Red)
4 PC(s) Cables
6 PC(s) Winch Terminal Covers
10 PC(s) M8 Screws
10 PC(s) M8 Washers
10 PC(s) M8 Spring Washers
6 PC(s) M8 Nuts
2 PC(s) M5 Screws
2 PC(s) M5 Washers
2 PC(s) M5 Spring Washers
2 PC(s) M5 Nuts
1 PC(s) User Manual
Electric Components |
2 Years |
Mechanical Components |
3 Years |
Synthetic Rope |
1 Year |
